HPC Connector Series

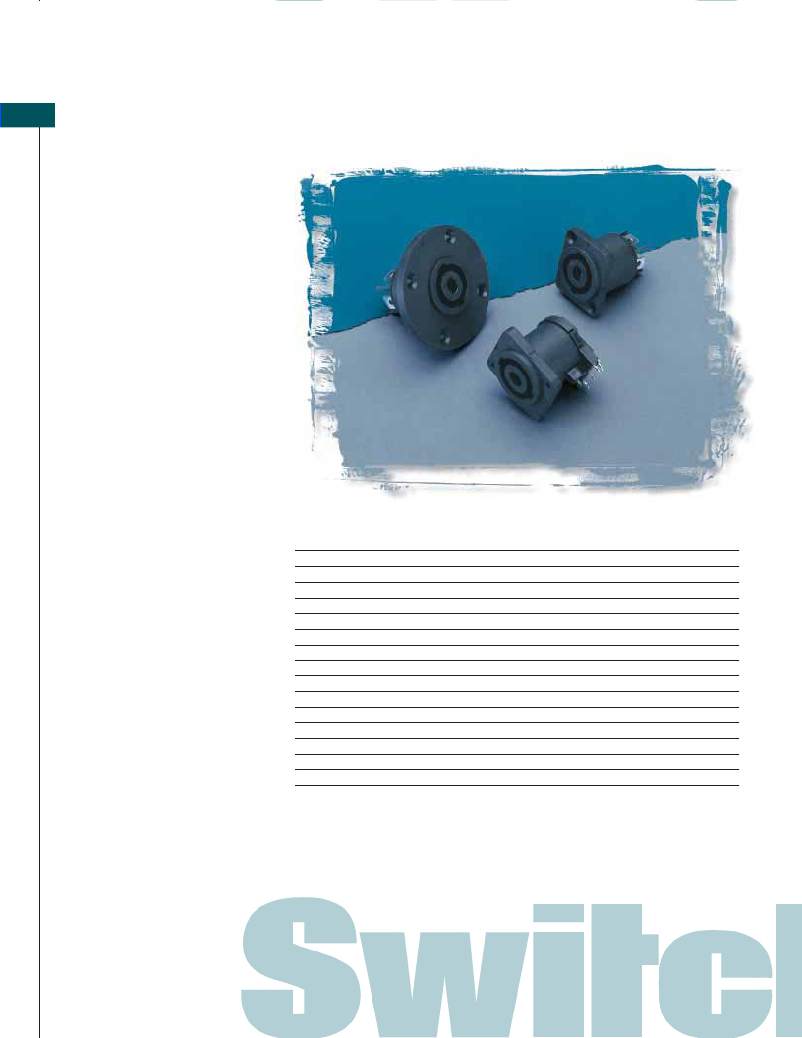

HPC Panel Style Series
The HPC Series is a complete line
of high power loudspeaker connectors
that are completely compatible
with the Neutrik ? Speakon ? 4 pole
connector series. Included in the
series are round and rectangular
panel mounts, straight cord plugs,
right angle cord plugs, and in-line
cord plug, plus a barrel adapter.
The HPC panel mounts come
with two different flange depths,
either 0.100" or 0.200" depths. The
0.200" depth allows for easy rear
mounting of the connector and
maintains proper mating with the
cord plug. Also, the panel mounts
have two different Faston ? terminal
sizes, 0.187" and 0.250" wide. Both
are rated at 50A, per UL 1977. The
PC mount versions have either
straight, right angle, or right angle
with a mounting post. They are
rated at 30A per UL 1977. The right
angle PC mount version with the post
allows for snap-in placement onto
the PC board during wave soldering.
The HPC cord plugs are offered
HPCPR41F
Ordering Information
HPCP41F
HPCP410RA
in straight, right angle, and an in-line
version. All have 0.250" Faston ?
terminals, rated at 50A per UL
1977, which makes it easy to swap
out plugs. The unique feature of the
cord plugs is their “push to lock”
design. They do not require a 1/4
turn to engage the contacts – simply
push the connector in like an XLR.
This feature eliminates the need to
remember to turn the connector to
make contact with the contacts. To
disengage, simply push the latch lever
forward and pull the connector out.
The straight cord plug uses a twist
on handle, while the in-line and
Part Number
HPCP41F
HPCP42F
HPCP41F1
HPCP42F1
HPCP410PC
HPCP420PC
HPCP410RA
HPCP420RA
HPCPR41F
HPCPR42F
HPCPR41F1
HPCPR42F1
HPCPR410PC
HPCPR420PC
Style
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Notes
Rectangle, 0.100" flange depth, 0.250" faston terms
Rectangle, 0.200" flange depth, 0.250" faston terms
Rectangle, 0.100" flange depth, 0.187" faston terms
Rectangle, 0.200" flange depth, 0.187" faston terms
Rectangle, 0.100" flange depth, straight PC terms
Rectangle, 0.200" flange depth, straight PC terms
Rectangle, 0.100" flange depth, right angle PC terms
Rectangle, 0.200" flange depth, right angle PC terms
Round, 0.100" flange depth, 0.250" faston terms
Round, 0.200" flange depth, 0.250" faston terms
Round, 0.100" flange depth, 0.187" faston terms
Round, 0.200" flange depth, 0.187" faston terms
Round, 0.100" flange depth, straight PC terms
Round, 0.200" flange depth, straight PC terms
right angle cord plugs use a snap-in
handle. The in-line connector mates
with both straight and right angle
cord plugs.
For those who find it more
convenient, we also offer a barrel
adapter which mates with either
straight or right angle cord plugs.
Speakon ? is a registered trademark
of Neutrik Inc.
See Pages 61 and 62 for Mechanical Drawings
